RS485 Modbus Output Area Velocity Doppler Ultrasonic Sensor For Open Drain And Sewage Water

Name: RS485 Modbus Output Area Velocity Doppler Ultrasonic Sensor For Open Drain And Sewage Water
Brand: LANRY
Price: 1 USD

Best RS485 Modbus Output Area Velocity Doppler Ultrasonic Sensor For Open Drain And Sewage Water wholesale

Brand Name : LANRY

Model Number : QSD6537

Certification : CE

Place of Origin : Shanghai, China (Mainland)

MOQ : 1 Unit

Price : Negotiable

Supply Ability : 100pcs /week

Packaging Details : carton package

Product Name : QSD6537 transducer

Accuracy : 1% of reading from 1.5 to 4.5m/s

Power supply : 85~265VAC,

Outputs : 4-20mA, data logger, RS485(Modbus),

Operating temperature : -20℃ to +60℃

Size : 270*215*175mm Wall-Mounted type

Contact Now

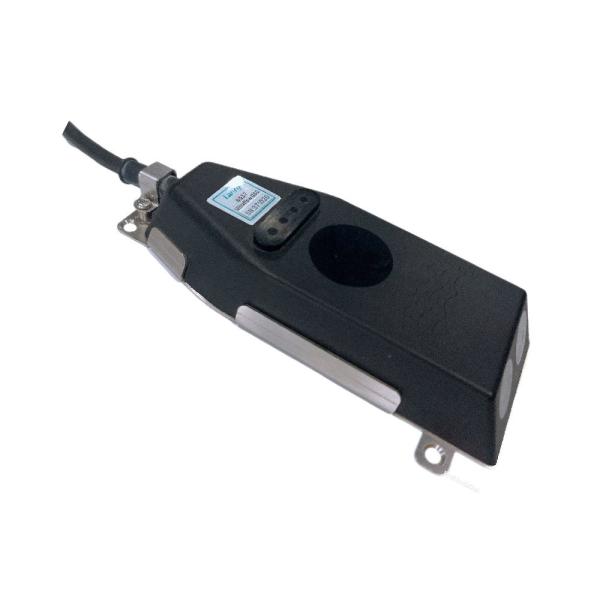

Open Drain Flow Meter with Conductivity Measurement ultrasonic sensor QSD6537

The DOF6000 series flowmeter consists of Flow calculator and the ultraflow 6537 Sensor, it is used to measure water velocity, depth, pressure temperature and conductivity of water flowing in rivers, streams, open channels and pipes. When used with a companion Lanry DOF6000 Calculator, flow rate and total flow can also be calculated.The flow calculator can calculate the cross-sectional area of partially fifilled pipe, open channel stream or river, for stream or river, with up to 20 coordinate points describing the river's shape of cross section. It is suitable for various applications.Ultraflow 6537 Velocity and Level Transducer is a unique combination of water velocity, depth, pressure, conductivityand temperature instruments integrated with a solid state logger. It is a new generation of intelligent flow measurement systems.

features:

1. 20 coordinate points to describe the river’s shape of cross section.

2. One instrument can measure the velocity, depth and conductivity at same time.

3. Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.

4. Depth Range: 0 to 10m

5. Measure velocity in both forward flow and back flow.

6. Depth is measured by both the pressure sensor and ultrasonic level sensor principles.

7. With coordinate correction and pressure compensation function.

8. IP68 Epoxy-sealed body design, long time under water.

9. RS485/MODBUS output, can contact computer directly.

Application

RS485 Modbus Output Area Velocity Doppler Ultrasonic Sensor For Open Drain And Sewage Water

Doppler open Channel Ultrasonic Flow meter DOF6000-W of Portable Type Specifications:

Calculator:

Enclosure type	Portable
Power Supply:	85~265VAC
Battery	12VDC, 12Ah, Lithium battery, Over 40 hours working time on a full-charge
Degree of protection	IP65
Operating temperature	-20℃ to +60℃
Application range	Channel: 200-6000mm
Outputs:	4-20mA, RS485(Modbus), data logger, GPRS (optional)
Enclosure Material	ABS
Size	270L×215W×175H (mm)
Data logger	16GB
Weight	3kg

Specifications :DOF6526 sensor

DOF6526 sensor:

Velocity	Range:	20mm/s-0.8m/s; 20mm/s-1.6m/s; 20mm/s-3.2m/s (default); 20mm/s- 6.4m/s; 20mm/s-13.2m/s Bidirectional velocity capability
	Accuracy:	±1% R
	Resolution:	1mm/s
Depth	Range:	0m to 3.0m or 0m to 6.0m
	Accuracy:	±2mm
	Resolution	H2 0-1m at 1mm, 1-2m at 2mm H5 0-2.5m at 2.5mm, 2.5-5m at 5mm
Temperature	Temperature:	0°C - 60°C
Temperature	Resolution:	0.1°C
General	Cable:	15M
	Cable Options:	User specified up to 100 meters
	Material:	PVC body, stainless steel mounting plate
	Dimensions:	290mm x 70mm x 30mm (L x W x H)
	Weight:	1kg (2kg with 15m cable)
Flow	Computation:	0.1°C
Flow	Channel type:	Flow rate, flow totalizer

Company

RS485 Modbus Output Area Velocity Doppler Ultrasonic Sensor For Open Drain And Sewage Water

Exhibition visiting

Datasheet Download, please click DOF6000-P Portable open channel flowmeter.pdf

Manual Download, please click DOF6000 Ultrasonic Doppler Open Channel flowmeter ...
