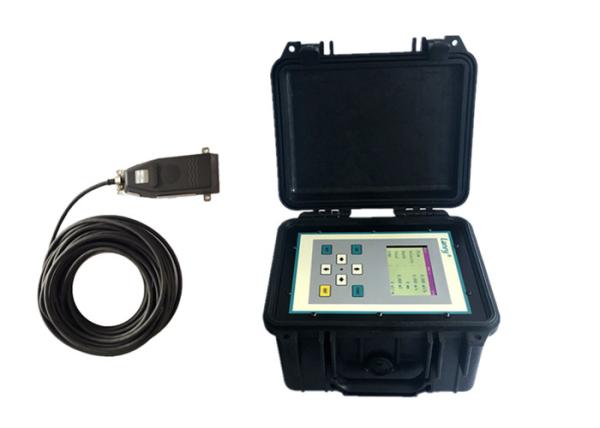

RS485 Modnus Outputs Ultrasonic Open Channel Flow Meter

Name: RS485 Modnus Outputs Ultrasonic Open Channel Flow Meter
Brand: LANRY
Price: 1 USD

Brand Name : LANRY

Model Number : DOF6000-P

Certification : CE

Place of Origin : Shanghai, China (Mainland)

MOQ : 1 Unit

Price : Negotiable

Supply Ability : 100pcs /week

Packaging Details : carton

Measure Principle : Doppler

Outputs : 4-20mA, RS485(Modbus), data logger, GPRS (optional)

Velocity range : 20mm/sec to 12 m/sec

Degree of protection : IP68

Weight : 3KG

Display : LCD Display

Contact Now

RS485 Modnus outputs Open Channel Flowmeter DOF6000 in partially filled pipes

We are the manufacturer of Doppler Open Channel Flow Meter, our High-precision Doppler Flowmeter DOF6000 can be available with 4-20mA, RS232, RS485 (Modbus) /GPRS and SD card logger outputs.DOF6000 series DOF6000 Digital River Water Flow Meter consists of flow calculator, and the integrated DOF6526 transducer to measure velocity and level at the same time.
The Ultrasonicl Flowmeter can record data of flow rate and total flow with a SD card up to 16GB.

The Doppler Open channel flowmeter can calculate the cross-sectional area of partially filled pipe, open channel stream or river, for stream or river, The Ultrasonic Flowmeter can input up to 20 coordinate points describing the river's shape of cross section.It is suitable for variou applications.

RS485 Modnus outputs Open Channel Flowmeter DOF6000 in partially filled pipes features:

1.20 coordinate points to describe the river’s shape of cross section.

2. Portable meter rechargeable battery can work up to 50 hours.
3. No flume or weir required.
4. Measure flow in partially filled pipes and open channels.
5. Display the velocity, level, flow rate and flow totalizer.

RS485 Modnus outputs Open Channel Flowmeter DOF6000 in partially filled pipes output

Specification:

IP class:	Calculator: IP66,Sensor: IP68
Power supply:	Calculator:220VAC&24VDC；Sensor:12VDC
Operating temperature:	0℃ ~+60℃ water temperature
Calculator output:	4-20mA, RS485( Modbus-RTU),Data logger,GPRS
Sensor size:	135mm x 50mm x 20mm (L x W x H)
Application:	Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Pipe, Channel type	Partially filled pipe, Open Channel and River, Stream
Sensor material:	Epoxy-sealed body, Marine Grade 316 Stainless Steel Mounting Bracket
Sensor weight:	1kg with 15m of cable, it can extend o 100m
Velocity range:	0.02m/s to 10m/s in one direction or bidirectional flow capacity(ultraflow 6537 parameter setting)
Velocity accuracy:	±1% measured velocity
Velocity resolution:	1mm/s
Temperature resolution:	0.1°C
Depth range:	20mm to 5m(Ultraflow 6527);20mm to 10m(ultraflow 6537)
Cable:	The standard cable is 15m, the maximum option is 100m.
Power usage:	10V to 24VDC, 50µA standby, 100mA/s
SDI-12:	SDI-12V 1.3recorder (1200 baud smart instrument channel)

Datasheet Download DOF6000-P Ultraflow QSD 6537 -manual.pdf

Packing & Delivery

Packing

DOF6000 Digital River Water Flow Meter
With years of export experience along with excellent quality, advanced services and competitive
prices, Lanry has won numerous customers' trust and support.With years of export experience
along with excellent quality, advanced services and competitive prices, Lanry has won
numerous customers' trust and support.

RS485 Modnus Outputs Ultrasonic Open Channel Flow Meter

Delivery

DOF6000 Digital River Water Flow Meter
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
