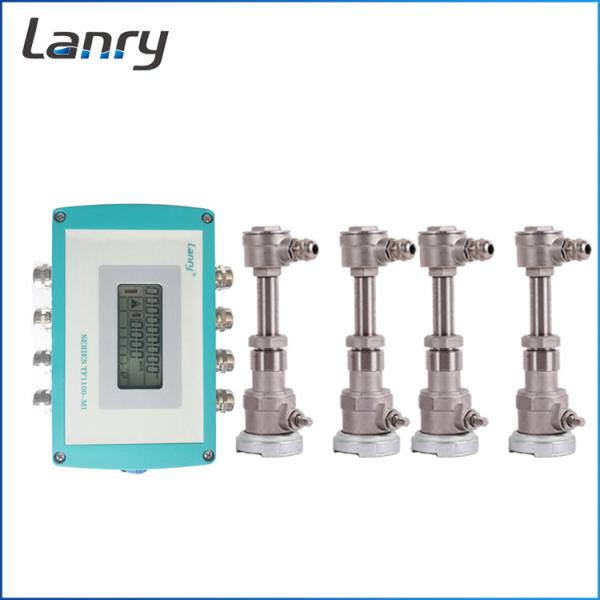

4 Channels Modbus Insertion Ultrasonic Flow Meter Transit Time

Name: 4 Channels Modbus Insertion Ultrasonic Flow Meter Transit Time
Brand: LANRY
Price: 1 USD

Best 4 Channels Modbus Insertion Ultrasonic Flow Meter Transit Time wholesale

Brand Name : LANRY

Model Number : TF1100-MI

Certification : CE

Place of Origin : Shanghai, China (Mainland)

MOQ : 1 piece

Price : Negotiable

Supply Ability : 1000 piece/pieces per Week

Delivery Time : 7-10 working days

Packaging Details : Packing: 1 piece/carton

Accuracy : ±0.5% of reading

Pipe size : DN100~DN2000mm

Output : Pulse, RS485 modbus, NB-IoT/4G/GPRS/GSM

Measure cycle : 500ms

Power supply : DC3.6V(disposable lithium batteries) ≥ 10 years

Channels number : 2 or 4 channels

Liquid Types Supported : both clean and somewhat dirty liquids with turbidity <10000 ppm

IP Class : transmitter:IP65; sensors:IP68

Display : 9-bit LCD display. Can display totalizer, instant flow, error alarm, flow direction, battery level and output

Flow velocity range : 0.01~12m/s bi-directional

Operating temperature : -20℃ to +60℃

Material : transmitter: Aluminum; sensors: stainless steel

Size : transmitter: 200*150*84mm; sensors: Φ58*199mm

Temperature : standard sensor:-35℃~85℃; high tempterature:-35℃~150℃

Contact Now

Low power consumption 4 channels transit-time ultrasonic flow meter

Product Description

4 Channels Modbus Insertion Ultrasonic Flow Meter Transit Time

Features

Features:
 ◆ Works on the multi-channel transit-time principle. The accuracy is 0.5%.
 ◆ Wide bi-directional Flow range of 0.01 m/s to 12 m/s. Repeatability is less than 0.15%.
 ◆ Low starting flow, super wide turndown ratio Q3:Q1 as 400:1.
 ◆  3.6V 76Ah battery power supply, with lifetime over 10 years (measuring cycle: 500ms).
 ◆ With storage function. Can storage both forward flow and backflow data 10 years (day, month, year ).
 ◆ Hot-tapped installation, no pipe line flow interrupted.
 ◆ Standard output is RS485 modbus, Pulse, NB-IoT, 4G, GPRS, GSM can be optional.
 ◆ Two channels and four channels can be optional.

Applications

General
 ● Service and maintenance
 ● Replacement of defective devices
 ● Support of commissioning process and installation
 ● Performance and efficiency measurement
 - Evaluation and assessments
 - Capacity measurement of pumps
 - Monitoring of regulating valves
 ● Energy efficiency audits

Water and waste water industry - hot water, cooling water,
 potable water, sea water etc.)
 Petrochemical industry
 Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
 Refrigeration and air conditioning systems
 Food , beverage and pharmaceutical industry
 Power supply- nuclear power plants, thermal & hydropower
 plants), heat energy boiler feed water.etc
 Metallurgy and mining applications
 Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

Specification

Measurement principle	Ultrasonic transit-time difference correlation principle
Channels number	2 or 4 channels
Flow velocity range	0.01 to 12 m/s, bi-directional
Accuracy	±0.5% of reading
Repeatability	0.15% of reading
Resolution	0.25mm/s
Pipe size	DN100-DN2000
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Installation	transmitter: wall-mounted ; sensors: insertion
Power Supply	DC3.6V(disposable lithium batteries) ≥ 10 years
Operating temperature	-20℃ to +60℃
Display	9-bit LCD display. Can display totalizer, instant flow, error alarm, flow direction, battery level and output
Output	Pulse, RS485 modbus, NB-IoT/4G/GPRS/GSM
Data Storage	Can storage the 10 years data as year, month and day
Measure cycle	500ms
IP class	transmitter:IP65; sensors:IP68
Material	transmitter: Aluminum; sensors: stainless steel
Temperature	standard sensor:-35℃~85℃; high tempterature:-35℃~150℃
Size	transmitter: 20015084mm; sensors: Φ58*199mm
Weight	transmitter: 1.3kg; sensors: 2kg/pair
Cable length	standard 10m
